Your Gateway to Sustainable Cultivation Excellence!
At Greenhouse Technologies, we take pride in being at the forefront of innovation in the horticultural realm. Our commitment to advancing sustainable agriculture has culminated in the development of state-of-the-art greenhouse solutions. Today, we're thrilled to introduce you to the cutting-edge technologies that are reshaping the landscape of modern cultivation – Greenhouse stuctures.
In a world where environmental responsibility is paramount, our Europrogress greenhouse systems have emerged as beacons of efficiency and productivity. Whether you're a seasoned farmer seeking to optimise your yields or a budding enthusiast venturing into agriculture, our greenhouse technologies are tailored to elevate your cultivation experience.
Embark with us on a journey where progress harmonises with precision. Discover how Greenhouse Technologies is redefining the possibilities of horticultural cultivation, empowering growers to achieve higher yields while minimising environmental impact. Join us in cultivating progress for a greener and more sustainable horticultural future.

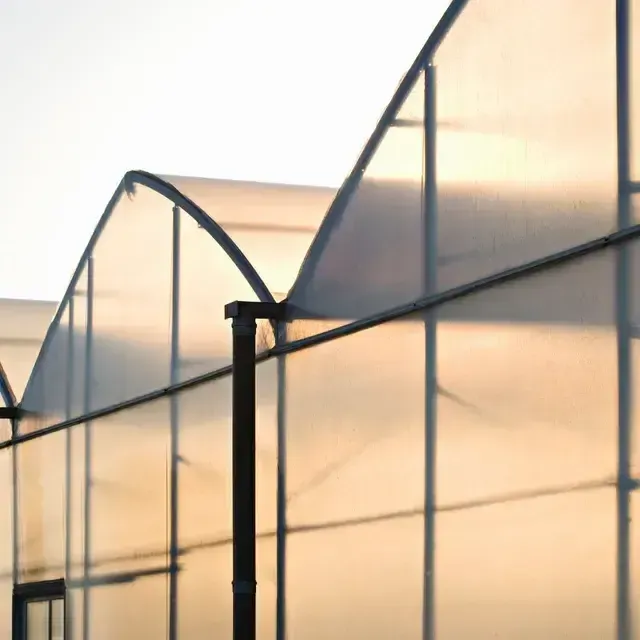

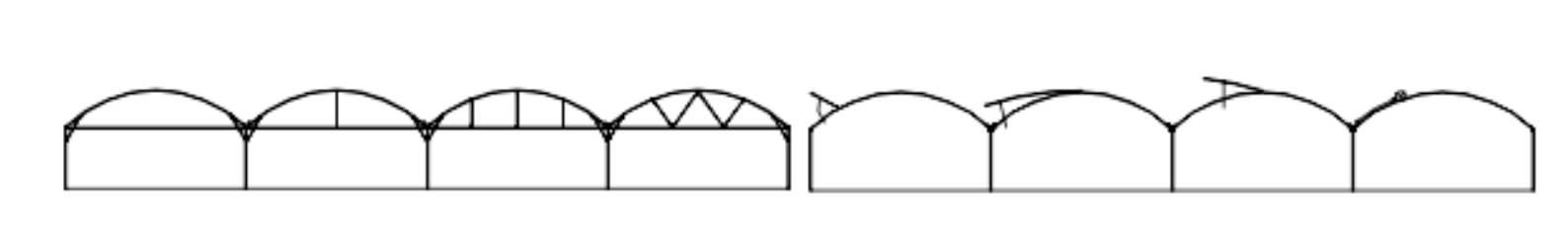

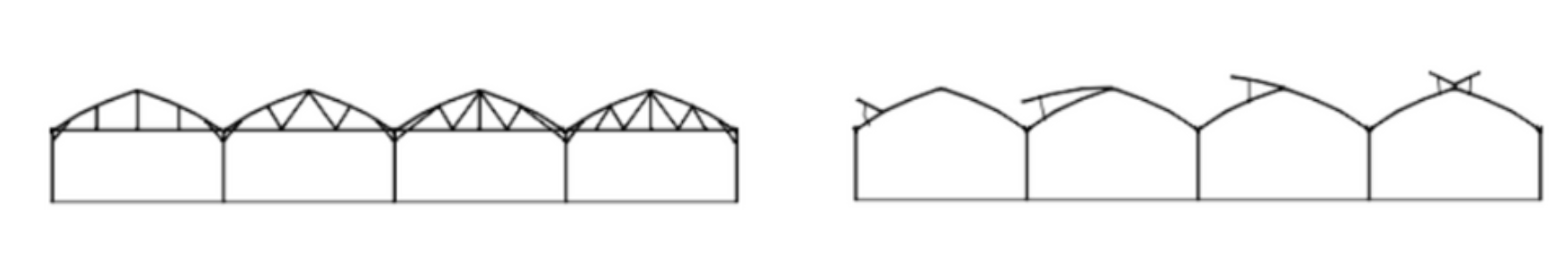

MULTI-SPANS
Multiart
High technology for the greatest productivity
Widthe (mm) - 6400 8000 9000 9600 12000 12800
Useful height (m) - From 2.50 up to 6.00
Arch spacing (m)- 2,00 2,50 3,00 4,00
Arches - 0.76 x 1,5/2,0mm
Truss- 0.32/42 x 15/2,0mm
Pillars- 8-x80 x 2,0/3,00mm

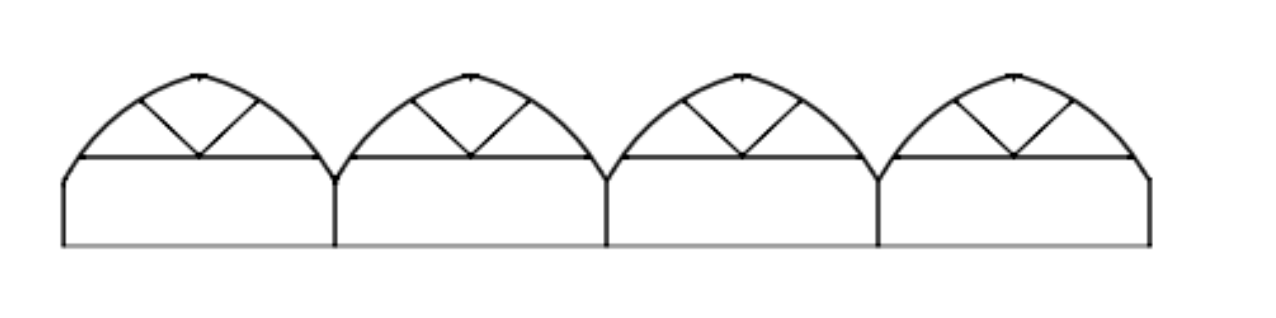

Multimed
Multi-span with best quality/price
Widthe (mm) - 8000 8500 9000 9600
Useful height (m) - From 2.50 up to 3.50
Arch spacing (m)- 2,00 2,50 3,00 4,00
Arches - 0.60 x 1,5/2,0mm
Truss- 0.32 x 1,5/2,0mm
Pillars- 060 x 1,5/2,0/3,0
Multieasy
Cheap and flexible on big surfaces
Widthe (mm) - 6000 6500 7500 8000 8500 9000
Pillar height (m)- From 1.20 up to 1.90
Useful height (m) - From 2.30 up to 3.00
Arch spacing (m)- 1,50 2,00 2,50
Arches - 0.60 x 1,5/2,0mm
Truss- 0.32 x 1,5mm
Pillars- 060 x 1,5/2,0mm
TECHNICAL FEATURES
TECHNICAL FEATURES

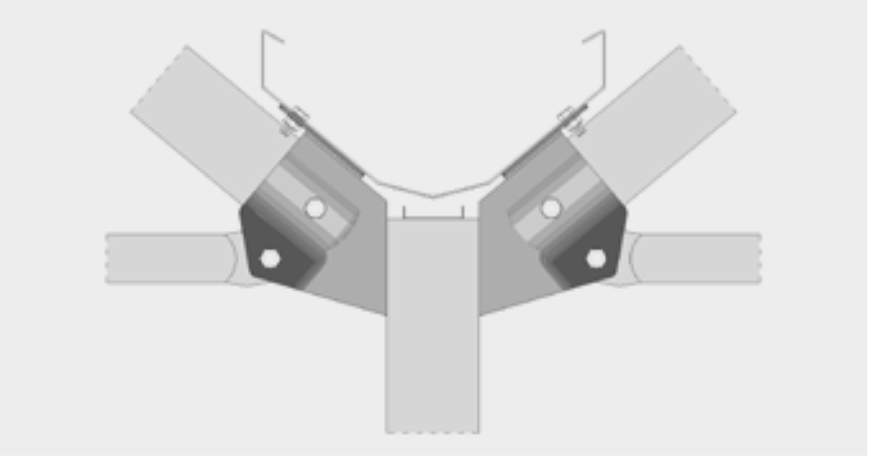

Gutter support
The gutter support consists of two bent
flanges with 30/10 thickness. They are positioned to the right and to the left of the post, respectively, and then bolted together. The shape of the flange allows housing and fastening the semi-arch and the horizontal tie rod. The upper part of the flanges feature bent and holed tabs for gutter support. The system as a whole is sturdy and efficient.

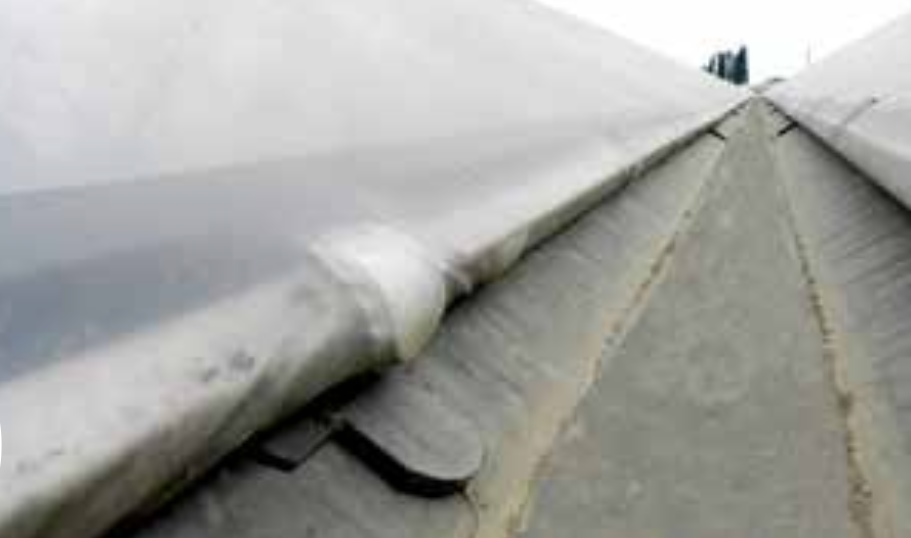

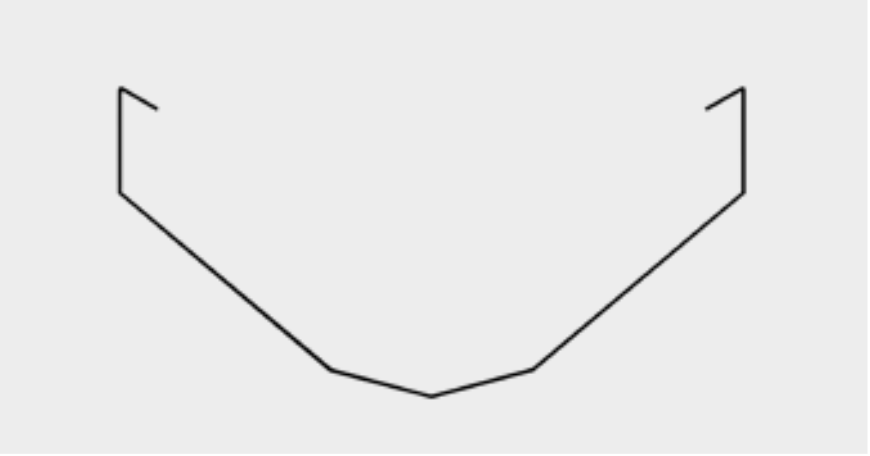

Gutter
The gutter channel manufactured by EUROPROGRESS provides significant benefits, such as high water flow rate. The slightly triangular base conveys condensate centrally towards an underlying collection duct. Depending on the needs, it is supplied with 15/10, 18/10, 20/10 thickness and SENDZMIR 450 or “HOT DIP” galvanisation. It is possible to install angles on the upper tabs where cloth fastening profiles are housed to collect condensate coming from the ridge.

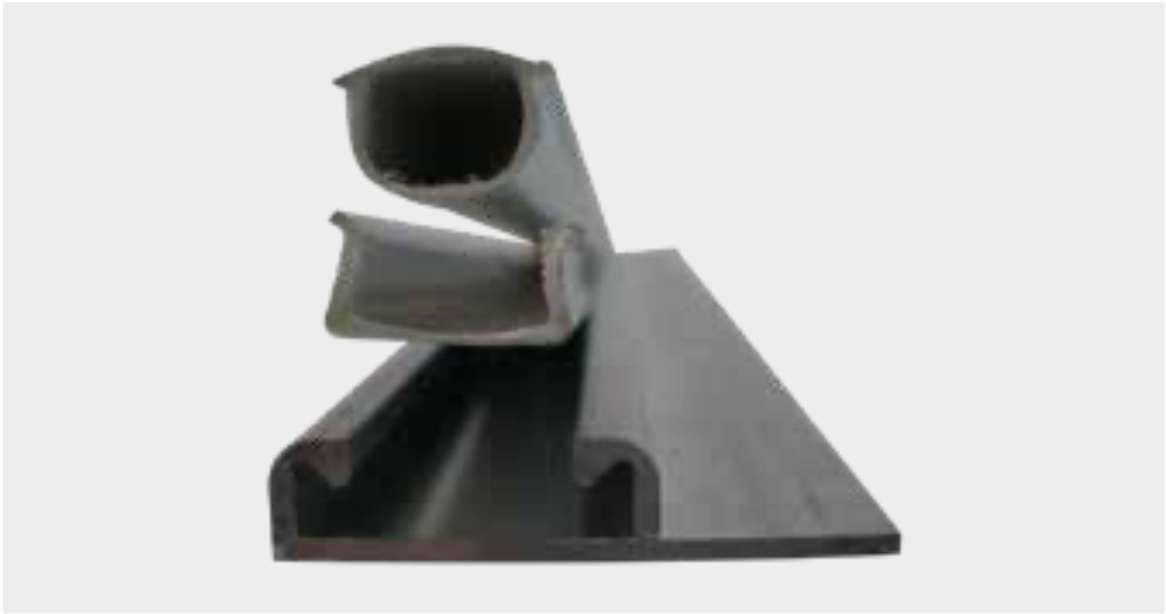

Plastic film fastening with ALU/PVC profiles
The plastic film is rolled out onto the alluminium housing and then blocked by means of a double PVC joint (consisting in M/F bars). This system is mainly used to install a double film covering and its advantages are:
• Greater duration of plastic film due to a lower heating
of the profile
• Greater duration of the profile as a result of its
anodised aluminium composition.
Plastic film fastening with ratchet system
The film is tensioned by wrapping and then tensioning it on a 30x30 mm tube line. All the mechanical parts (bars + jack) are completely hot zinc coated to avoid any problem of rust and oxidation.
It ensures a perfect and fast tensioning.
